SF-800 HEAVY DUTY POWER BAND RESAW
PAGE 2

TOP WHEEL SUPPORTING SYSTEM BOTTOM WHEEL MADE OF MONO-BLOCK CASTING

FUJITA PATENTED MECHANISM (A) TOP FLYWHEEL COMPLETE WITH HEAVY DUTY CONSEALED BEARING ROTATING ON FIXED SHAFT ¥ No vibration of top and bottom wheels ¥ No deflection on wheel shaft ¥ Longer life time of shaft and bearing ¥ Strongest blade tensionning (B) AUTOMATIC BLADE TENSION ADJUSTING SYSTEM (PAT. NO.282290) (C) PISTON TYPE SELF-CONTROL TENSION SYSTEM (PAT. NO.470593) (D) SIMPLE AND TROUBLE FREE MECHANISM ¥ Bottom wheel & V-pulley made of mono-block casting with perfect balancing, no vibration and less noise.

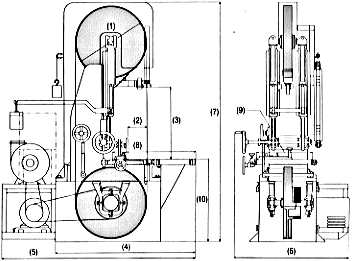

TECHNICAL DIMENSION
(1)	WHEEL DIAMETER	787 mm (31")
(2)	MAX. FENCE OPENING	311 mm (12")
(3)	MAX. SAW GUIDE OPENING	900 mm (28")
(4)	WIDTH OVERALL	1530 mm (56")
(5)	WIDTH OVERALL (W / MTR)	2115 mm (83")
(6)	DEPTH OVERALL	1230 mm (46")
(7)	HEIGHT OVERALL	2590 mm (102")
(8)	TABLE WIDTH	900 mm (36")
(9)	TABLE DEPTH	690 mm (27")
(10)	TABLE HEIGHT	900 mm (36")
