SF-800 HEAVY DUTY POWER BAND RESAW
PAGE 1

OUTSTANDING FEATURES

¥ Rigid design of complete heavy cast iron body to resist in vibration during high speed cutting. ¥ Powerful sawing by lnertial of top & bottom heavy casting wheels. ¥ Solid top wheel with perfect weight balance against less noise and minimum vibration. ¥ Easy installation with no foundation works. ¥ Cam type brake system for immediate stop. ¥ Highest quality bearings for long durability and smooth operation. ¥ Maximum safety with heavy metal steel covers. ¥ Automatic star-delta switch with overload protection. ¥ Double column support system with top saw wheel for better blade response. ¥ Emergency stop push button installed.

SF-800

MODEL	SF-800
BAND WHEEL DIAMETER	787 mm (31")
BAND WHEEL WIDTH	90 mm (3-1/2")
MAX FENCE OPENING	31 mm (13")
MAX SAW GUIDE OPENING	900 mm (36")
SAW BLADE WIDTH	100 mm (4")
SAW BLADE LENGTH	5940 mm (234")
TABLE HEIGHT	900 mm (36")
TABLE WIDTH	900 mm (36")
TABLE DEPTH	595 mm (24")
BLADE SPEED (50Hz)	31 m / sec. (1860m / min.)
BLADE SPEED (60Hz)	37 m / sec. (2220m / min.)
BAND WHEEL SPEED (50Hz)	790 rpm
MOTOR POWER (STANDARD)	15 kw (20 HP)
MACHINE DIMENSIONS	1230(W) x 2115(L) x 2590(H) mm
MACHINE WEIGHTS (NET / GROSS)	1700 kgs / 2000 kgs

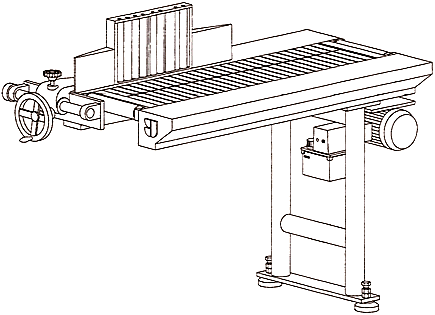

YCX-60 CATERPILLAR FEEDER

YCX-60 CATERPILLAR FEED TABLE UNIT
Feed Speed	0 - 70 M / Min.
Caterpillar Width	127mm (Inside) & 190mm (Outside)
Geared Motor	1.5 kw / 4P
Machine Weight	550kgs
Machine Dimension	1,600 (L) x 740 (W) x 450 (H) mm
