SF-750 HEAVY DUTY POWER BAND RESAW

PAGE 2

	SF-750 HEAVY DUTY POWER BAND RESAW
PAGE 2

TOP WHEEL SUPPORTING
SYSTEM

[MONO-BLOCK CASTING]

BOTTOM WHEEL MADE OF
MONO-BLOCK CASTING

REMARKABLE PATENTED MECHANISM

(A) TOP FLYWHEEL COMPLETE WITH HEAVY DUTY CONSEALED BEARING ROTATING ON FIXED SHAFT

Ą No vibration of top and bottom wheels

Ą No deflection on wheel shaft

Ą Provide longer life time of shaft and bearing

Ą Strong blade tensioning comparing with other brand machines (2- 3 times)

(B) AUTOMATIC BLADE TENSION ADJUSTING SYSTEM

(PAT. NO.282290)

(C) PISTON TYPE SELF-CONTROL TENSION MECHANISM

(PAT. NO.470593)

(D) SIMPLE AND TROUBLE FREE MECHANISM

Ą Bottom wheel & V-pulley made of MONO-BLOCK CASTING with perfect balancing, no vibration and less noise.

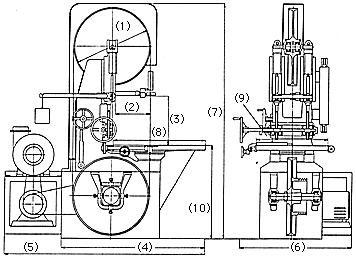

TECHNICAL DIMENSION

(1) WHEEL DIAMETER 750 mm (30")

(2) MAX. FENCE OPENING 305 mm (12")

(3) MAX. SAW GUIDE OPENING 700 mm (28")

(4) WIDTH OVERALL 1400 mm (56")

(5) WIDTH OVERALL (W / MOT0R) 1980 mm (78")

(6) DEPTH OVERALL 1150 mm (46")

(7) HEIGHT OVERALL 2350 mm (94")

(8) TABLE WIDTH 900 mm (36")

(9) TABLE DEPTH 690 mm (27")

(10) TABLE HEIGHT 900 mm (36")

TECHNICAL DIMENSION
(1)	WHEEL DIAMETER	750 mm (30")
(2)	MAX. FENCE OPENING	305 mm (12")
(3)	MAX. SAW GUIDE OPENING	700 mm (28")
(4)	WIDTH OVERALL	1400 mm (56")
(5)	WIDTH OVERALL (W / MOT0R)	1980 mm (78")
(6)	DEPTH OVERALL	1150 mm (46")
(7)	HEIGHT OVERALL	2350 mm (94")
(8)	TABLE WIDTH	900 mm (36")
(9)	TABLE DEPTH	690 mm (27")
(10)	TABLE HEIGHT	900 mm (36")
